FMC WECO Type Hammer Union FIG 1502 1002 602 400 402 206 100 Manufacturer in China
Product Overview of Hammer Unions:
We can provide various hammer unions based on the introduced technologies from SPM, including thread connection type, welding type and H2S service unions. 1"~4" and CWP of 1000Psi~20000Psi(7MPa~140MPa) unions are available. For easy identification, unions with different pressure ratings will be painted in different colours, and there are evident marks indicating size, connecting mode and pressure ratings.
The model of conventional union (thread connection): FIG100,FIG200,FIG206,FIG400,FIG402,FIG602,FIG1002,FIG1502;rated: 1000psi(7MPa)~15000psi(105MPa).
The model of Welding Union: FIG20,FIG60, FIG1002,FIG1502,FIG2002;rated: 2000psi(14MPa)~20000psi(140MPa).
The model of H2S welding union: FIG602,FIG1002,FIG1502,FIG2202,Tr120×6,Tr150×6,Tr180×8;rated: 5000psi(35MPa)~15000psi(105MPa).
Reliable Sealing performance
Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion. Different pressures and applications have different sealing method.
Fast Installation
Wherever they are, wing nuts and rigid ACME will ensure quick installation or dismantling without special tools.
Highly Interchangeable
All unions are made in English system, and can be interchanged with products in international market. Seal rings are fully interchangeable with SPM or FMC equivalent products; Marks of size and pressure in wing nuts are formed in die-forging model, same as international products.
Advanced Machining and Inspection Method
Spherical adapters machined by precision NC machine tools and LP thread machined by special cutting tools can ensure high sealing performance; Wing nuts machined by NC machines have high strength and load-bearing capacity; Welding materials and welding grooves conform to API 16C; Unions for sour gas environment are strictly manufactured to NACE-MR0175 and API RP-14E.
Main Technical Parameters for Hammer Union
| Size | SMLS ---1"-12" |
| type | fig100, fig200, fig206, fig207, fig300, fig400, fig602, fig1502 |
| Standard | API 6A |
| Material | - carbon steel: 45#, 20#, Q345 etc.
- Stainless steel: ASTM SS304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.
|
| Surface | Yellow, Red, Blue, Orange or upon customer’s requirement |
| Certification | ISO 9001:2008 |
| Packing | Plywood cases, pallets, or as per your request. |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, paper making, construction etc |
| Port of delivery | Shanghai port, Tianjin port, Qingdao port etc. |

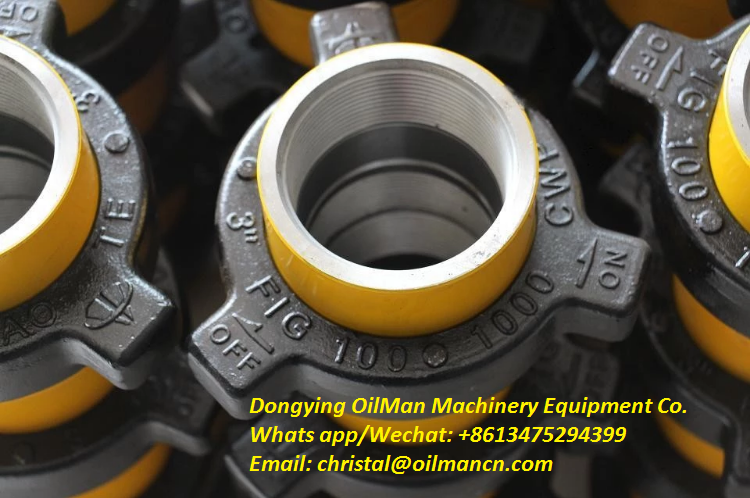

Products Show:
Any enquiry please contact us by email: christal@oilmancn.com.
Visit our website: www.oilmanchina.com for more products information.
WhatsApp/WeChat:+86 13475294399
