API 7K Oil Drilling Rig Tongs 2 3/8" - 8" for petroleum and mine drilling

Model Number : ZQ Series Drill Pipe Power Tong

Certification : API 7K

Place of Origin : China

MOQ : 1 set

Price : USD10000-50000/piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 15-30 work days

Packaging Details : Export Wooden Case

Product Name : API 7K Spec Drill Pipe Power Tong ZQ203-100 Hydraulic Power Tong

Keywords : Drill Pipe Power Tong

Application : Oil Well Drilling

Material : Alloy Steel

Size : 2 3/8" - 8"

Color : Red or as customer requirement

Contact Now

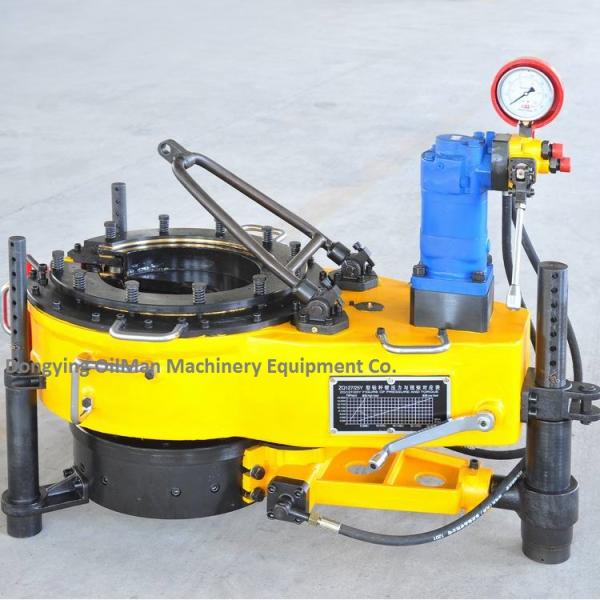

API 7K Spec Drill Pipe Power Tong ZQ203-100 Hydraulic Power Tong

Drill pipe power tong is applicable in the petroleum and mine drilling, it is safety and labor saving, and improving the working efficiency.

The power tongs have the following features:

1.Using pneumatic power to shift and drive backup tong

2.It is a integral mechanism made by spin tong and torque tong

3.Changing gear allowed during operation

4.New or old drilling pipe joint could be clamped reliably

5.Both directions could run the maximum torque and rotation speed

Technical Parameter for Drill Pipe Power Tong:

Model	ZQ127/25Y	ZQ162-50	ZQ203-100	ZQ203-100-II	ZQ203-125
Pipe Size Range of Master Tong	Φ73-140	Φ85-162	Φ101-203	Φ114-203	Φ101-203
Pipe Size Range of Master Tong	27/8 - 51/2	23/8 - 5	31/2 - 8	27/8 - 8	31/2 - 8
High Gear Rated Torque	3500N.m	9500N.m	9500N.m	9500N.m	10000N.m
High Gear Rated Torque	2581ft-lbs	7007ft-lbs	7007ft-lbs	7007ft-lbs	7370ft-lbs
Low Gear Rated Torque	25000N.m	50000N.m	100000N.m	100000N.m	145000N.m
Low Gear Rated Torque	18349ft-lbs	36880ft-lbs	73756ft-lbs	73750ft-lbs	106940ft-lbs
High Gear Rated Speed	≤65r/min	60r/min	40r/min	40r/min	33r/min
Low Gear Rated Speed	≤10r/min	4.1r/min	2.7r/min	2.7r/min	2.2r/min
Rated Operation Pressure	16 MPa	14 MPa	16 MPa	16.6 MPa	18 MPa
Rated Operation Pressure	2320 psi	2030 psi	2320 psi	2400 psi	2610psi
Max. Flow	120 L/min	120 L/min	114 L/min	114 L/min	120 L/min
Max. Flow	32 gpm	31.7 gpm	30 gpm	30 gpm	32gpm
Pneumatic Operation Pressure		0.5~0.9MPa	0.5~0.9MPa	0.5~0.9MPa	0.6~1.0MPa
Pneumatic Operation Pressure		72.5~130.5psi	72.5~130.5psi	72.5~130.5psi	72.5~130.5psi
Dimension :L x W x H	1250x 780 x 1000	1570 x 800 x 1190	1700 x 1000 x 1400	1760 x 1000 x 1630	1750 x 1060x 1680
Weight(including Backup Tong)	650kg	1500kg	2400kg	2500kg	2500kg
Weight(including Backup Tong)	1433lbs	3310lbs	5291lbs	5510lbs	5512lbs

API 7K Oil Drilling Rig Tongs 2 3/8" - 8" for petroleum and mine drilling

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com
